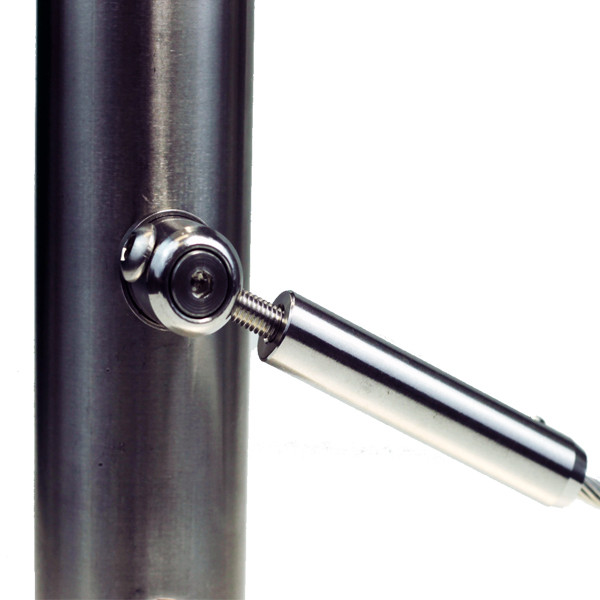

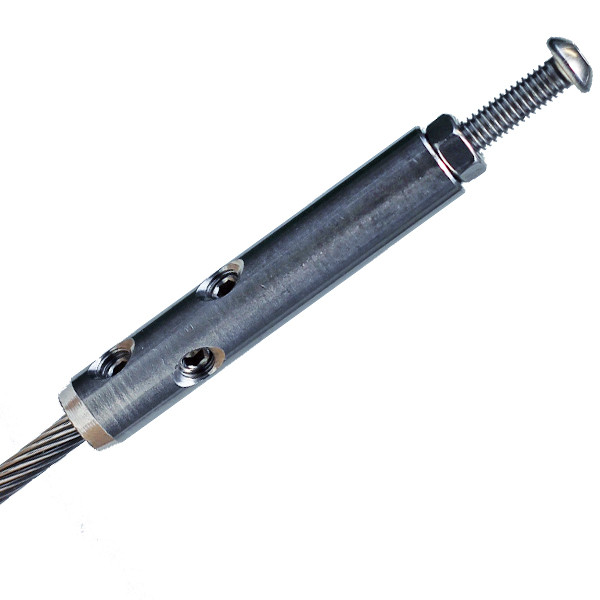

MARIpress DIY Terminals
Swageless DIY Wire Rope Terminals
- Perfect for Balustrading or Green Wall Trellis
- No specialist tools needed
- Simply insert cable and tighten built in allen headed screws
- Left and Right hand version
Right Hand Version

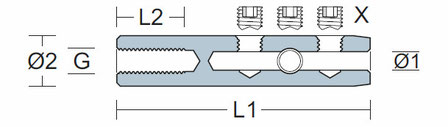

| Part No. | Wire Ø | Thread - G |
Ø 1 |
Ø 2 |
X | L1 | L2 |
| DIY4i |
3-4 |
M6 - RH | 4,4 | 12 | 3x M6 | 60 | 16 |
| DIY5i | 5 | M6 - RH | 5,4 | 13 | 3x M6 | 66 | 20 |
| DIY6i | 6 | M8 - RH | 6,4 | 14 | 4x M6 | 78 | 22 |
Left Hand Version
| Part No. | Wire Ø | Thread - G | Ø 1 | Ø 2 | X | L1 | L2 |
| DIY4iL |
3-4 |
M6 - LH | 4,4 | 12 | 3x M6 | 60 | 16 |
| DIY5iL | 5 | M6 - LH | 5,4 | 13 | 3x M6 | 66 | 20 |
| DIY6iL | 6 | M8 - LH | 6,4 | 14 | 4x M6 | 78 | 22 |

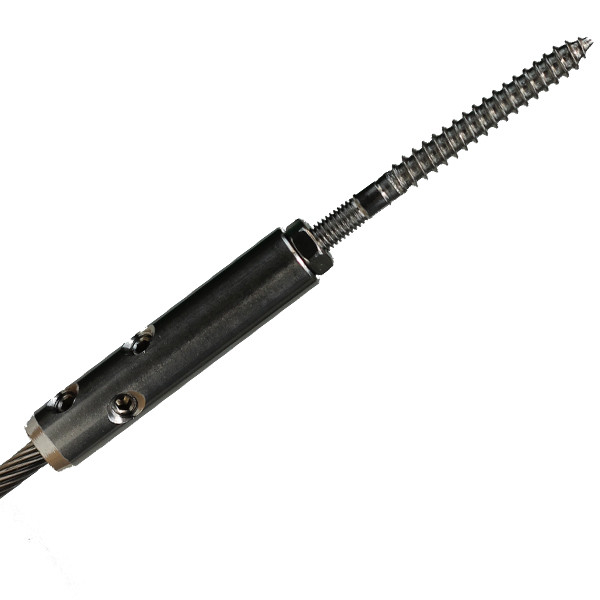

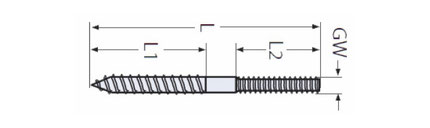

Stainless Steel Dual Double Thread Screw
- Metric / Wood Screw
- Left and Right hand version
| Part No. | Wire Ø | Thread - G | L 1 | L 2 | L |
| bST6 |
- |
M6 - RH | 50 |
30 |
85 |
|
bST6L |
- |
M6 - LH | 50 |
30 |
85 |
|
bST8 |
- |
M8 - RH |
60 |
35 |
100 |
| bST8L | - | M8 - LH | 60 | 35 | 100 |

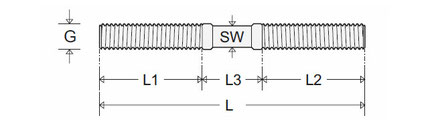

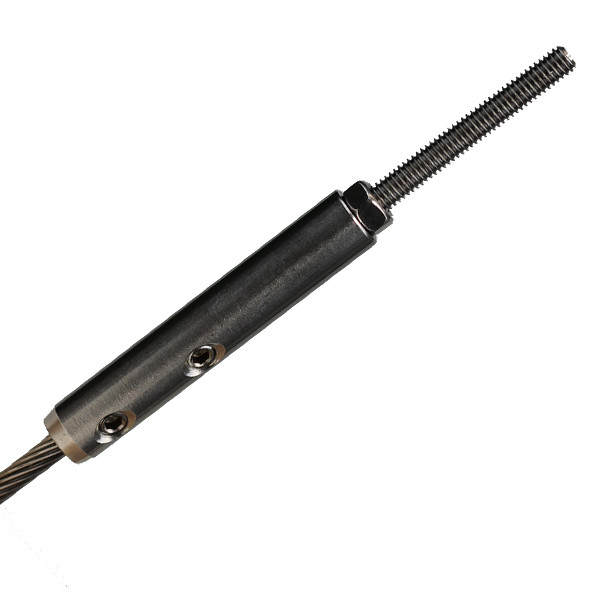

Stainless Steel Dual Metric Thread Screw
- Metric Right / Metric Left
| Part No. | Thread - G | L | L 1 |
L2 |
L3 |
| bLR6 | M6 - RH / LH | 66 |
30 |
30 | 6 |
| BLR8 | M8 - RH / LH | 76 | 35 | 35 | 6 |

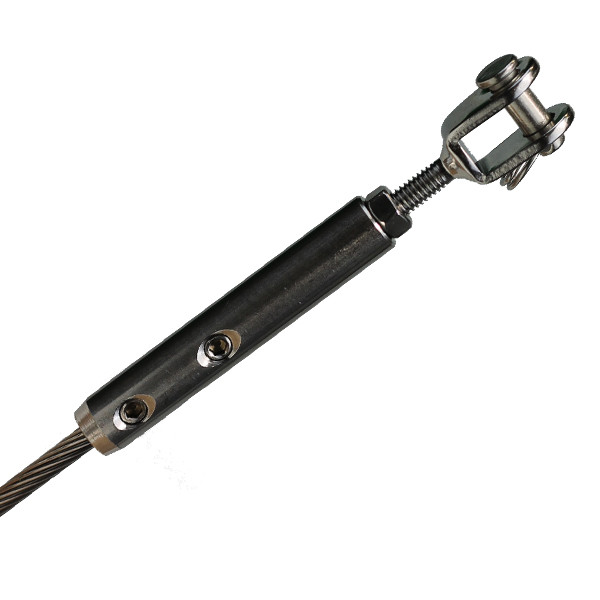

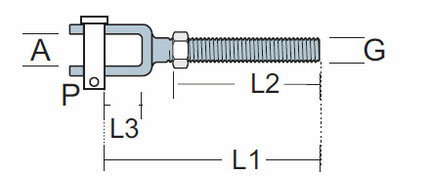

Stainless Steel Mini Thread Jaw Terminal
- Metric Right / Metric Left
| Part No. | Thread - G | A | P | L 1 |
L2 |
L3 |
| mSG6 | M6 - RH | 9 | 6 | 42 | 25 | 10 |
| mSG6L | M6 - LH | 9 | 6 | 42 | 25 | 10 |
| mSG8 | M8 - RH | 10 | 8 | 48 | 25 | 12 |
| mSG8L | M8 - LH | 10 | 8 | 48 | 25 | 12 |

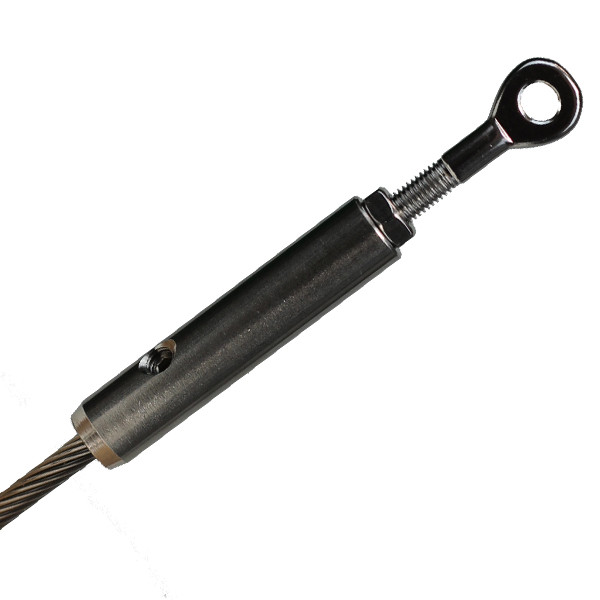

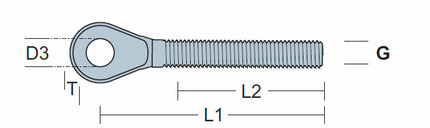

Stainless Steel Mini Thread Eye Terminal
- Metric Right / Metric Left
| Part No. | Thread - G | T | D3 | L 1 |
L2 |
| mSA6 | M6 - RH | 4 | 6,5 | 47 | 28 |
| mSA6L | M6 - LH | 4 | 6,5 | 47 | 28 |
| mSA8 | M8 - RH | 5 | 8,5 | 54 | 40 |
| mSA8L | M8 - LH | 5 | 8,5 | 54 | 40 |
